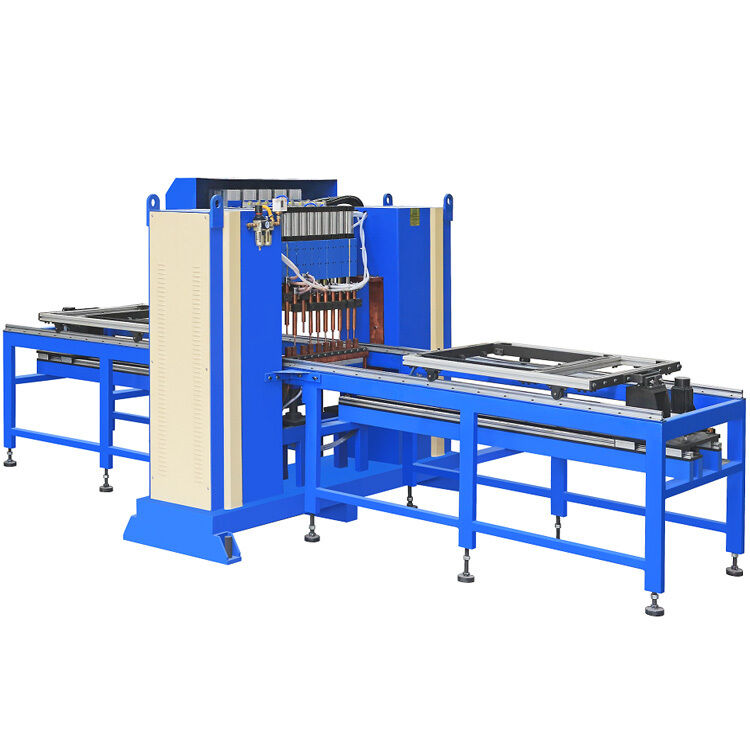

Name: Hwashi Multi-Point Automatic Spot Welder with 160kVA X2 Power for 2+2mm Max Welding Thickness on Sheet Metal
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ100K
Price: 25.00 USD
Availability: InStock

家 > プロダクト > ステンレス鋼の溶接機 >

Hwashi Multi-Point Automatic Spot Welder with 160kVA X2 Power for 2+2mm Max Welding Thickness on Sheet Metal

Multi-Point Automatic Spot Welder

160kVA X2 Spot Welding Machine

2+2mm Max Welding Thickness Sheet Metal Welder

起源の場所:

中国

ブランド名:

hwashi

証明:

CE/CCC/ISO

モデル番号:

WL-SQ100K

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

モデル:

WL-SQ100K

導電性の方法:

両側

定格容量:

160kva x2

適用材質:

ステンレス鋼、炭素鋼、アルミニウム、金属

溶接方法:

抵抗タッチ溶接

最大厚さの厚さ:

2+2mm

保証:

1年

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

支払いを受け取ってから60営業日

支払条件

LC、T/T

供給の能力

毎月50セット

Hwashi Multi-Point Automatic Spot Welder with 160kVA X2 Power for 2+2mm Max Welding Thickness on Sheet Metal

最もよい価格を得なさい

ビデオ

調理器具ハンドル用 15KVA 電力 8000J エネルギー貯蔵 1500kg 加圧ステンレス鋼突起溶接機

最もよい価格を得なさい

ビデオ

15KVA 電力 8000J エネルギー貯蔵と 1500kg スープポットハンドルのための圧縮

最もよい価格を得なさい

ビデオ

インテリジェントタッチスクリーンコントローラ付きのテーブルスポット溶接機

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

Hwashi Multi-Point Automatic Mobile Spot Welder for Stainless Sheet Door Plates

Engineered for rapid fabrication, this spot welding machine delivers consistent, high-strength welds on stainless steel, aluminum, and carbon steel sheets. Equipped with an intelligent microprocessor control system, it adjusts welding current, time, and pressure in real-time to ensure uniform joint quality across varying sheet thicknesses (0.5mm-5mm). The automatic mobile arm enables 360° positioning, reducing manual intervention and boosting production efficiency by up to 70% compared to traditional fixed models. Ideal for automotive body panels, appliance casings, and structural metalwork.

Working Process

Harnessing high-power fiber laser technology, this system offers micron-level precision for thin to medium-thickness metal sheets (0.1mm-3mm). The CNC motion control enables intricate geometric welding paths, eliminating the need for secondary finishing. Its non-contact welding process minimizes heat-affected zones, preserving material integrity and reducing distortion—critical for aerospace components, electronic enclosures, and medical device fabrication. The system supports automatic loading/unloading integration for fully automated production lines.

Key Advantages

Refined welding quality
No need for special equipment
Multi-head welding simultaneously
Maximally easy working area access
Production flexibility
Reduced labor costs

Product Features

Flexible Usage: Adjust welding head distance according to your drawing requirements by simply loosening bolts on the cylinder
Reduced Set-up Time: Significantly reduces ancillary work such as electrode adjustment and workbench set-up compared to conventional stationary spot welders
Easy Parameter Setting: Welding conditions easily set using touch panel system with programmable parameters for different materials and thicknesses
Comfortable Operation: No need to hold workpiece during welding; automatic pressurization reduces operator physical burden and increases productivity

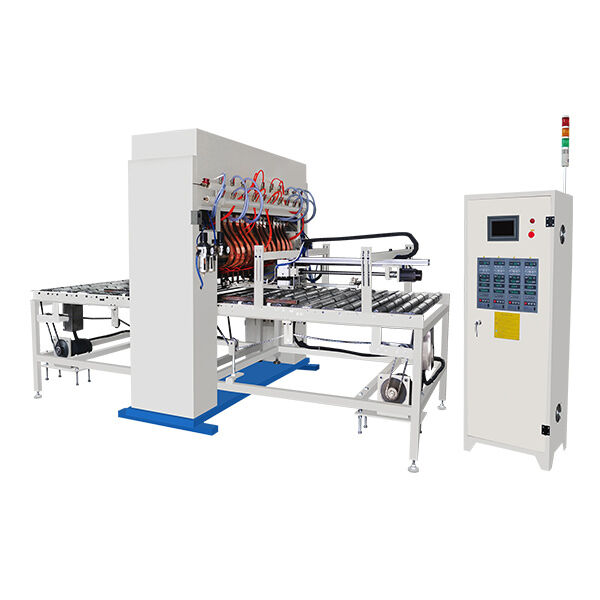

Automatic Moving Table

Choose between two welding tables located on the same side or different sides. Custom machine design available according to your product drawings.

Technical Specifications

Item	WL-AT-MF 15
Input Voltage	380v, 3-Phase
Input Power	160KVA x 2
Max. Welding Current	32000 A x 2
Welding Specification	32 Kinds
Different Welding Current	5000
Effective Size of Welding Platform	1500mm x 1500mm
X Axis Effective Width	750 mm
Y Axis Effective Length	1500 mm
X Axis Servo Motor	2 Sets
Y Axis Servo Motor	2 Sets
Feeder Moving Speed	800 mm/sec
Servo Motor Power	450 W
Welding Cylinder	2 No. (80x50mm)
Upper Welding Electrode	2 Sets
Lower Electrode	Full flat table
