Name: Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WLスクエアMF160Kx2
Price: 25,000.00 USD
Availability: InStock

家 > プロダクト > コンデンサーの排出の溶接機 >

Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles

Medium frequency spot welder with dual heads

Automatic spot welder for barrel hoops

MFDC inverter spot welding machine

起源の場所:

中国

ブランド名:

HWASHI

証明:

モデル番号:

WLスクエアMF160Kx2

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

製品名:

冷蔵庫ワイヤチューブコンデンサー生産ライン溶接機械折りたたみ機械金属ワイヤ加工

寸法(長さ*幅*高さ):

5000x2400x2200mm

重さ:

2500KG

効果的な溶接幅:

600-1000mm （カスタマイズされる）

保証:

1年

トランス:

MF DCの変圧器

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

FCLのためのポリ塩化ビニールのフィルムの海の価値がある木のパッケージ

受渡し時間

30 - 60仕事日は後あなたの支払を受け取った

支払条件

LC、T/T

供給の能力

毎月50セット

MFDC Double-Head Spot Welding Machine with Dual-Point Welding and MFDC Transformer for Barrel Hoop Lock Clips (600-1000mm Welding Width)

最もよい価格を得なさい

ビデオ

Hwashi Wl-Sp-1ook AC スポット溶接機高性能電気スポット溶接機

最もよい価格を得なさい

ビデオ

15KVA コンダッシター放電溶接機

最もよい価格を得なさい

ビデオ

SS料理用器具の鍋柄のためのHwashi 15KVAコンデンサーター放電溶接機

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

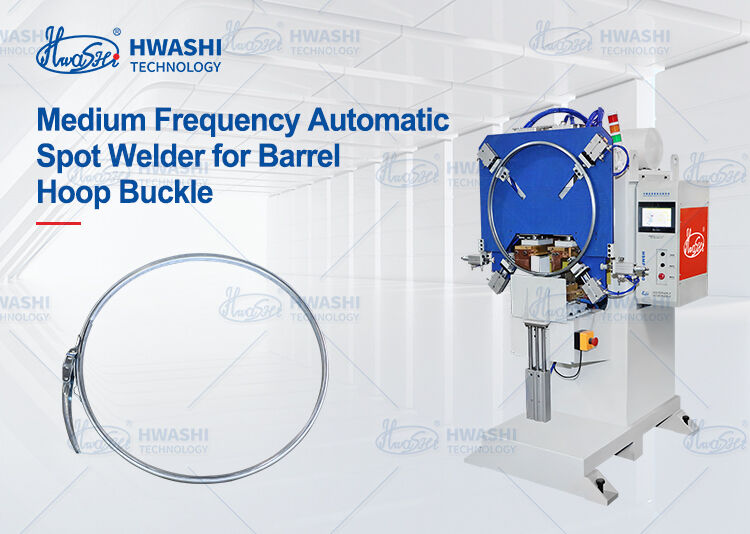

Medium Frequency Automatic Spot Welder for Barrel Hoop Buckle

On every steel drum, the hoop buckle is the most critical component—it's the mechanical latch that tightens and locks the barrel hoop in place, bearing the full clamping force during sealing, opening, and transportation. A failed buckle weld results in loose hoops, broken seals, and leaked contents. For industries handling chemicals, petroleum, or food products, this represents not just a quality issue but a safety and compliance failure.

Hwashi's Medium Frequency Automatic Spot Welder for Barrel Hoop Buckles is engineered to prevent such failures. This machine automates the entire buckle welding process: operators load the hoop and buckle, and the machine positions, clamps, and welds both attachment points with precise MFDC energy before releasing the finished part. Every weld is identical—consistent nugget size, penetration depth, and pull strength—ensuring reliability shift after shift, drum after drum.

What distinguishes this machine is the integration of medium-frequency inverter DC technology with a welding process specifically optimized for barrel hoop buckles. The MFDC power supply handles galvanized steel hoops without spatter or coating damage. The fixture system accommodates the curved geometry of barrel hoops, and dual welding heads deliver symmetrical, simultaneous welds unmatched by single-head machines.

Key Differentiating Features

Automatic Welding Cycle

Eliminates operator skill dependency with fully automated clamping, electrode approach, welding current profile, hold time, and retraction. Ensures consistent weld quality regardless of operator experience.

MFDC Inverter Technology

Operates at 1000Hz for rapid, concentrated energy pulses that form solid weld nuggets before zinc coating vaporizes. Results in clean welds with minimal spatter, intact zinc coating, 30%+ energy savings, and power factor ≥0.90.

Dual Welding Heads

Simultaneous, synchronized welding of both attachment points ensures symmetrical weld quality under identical conditions. Eliminates thermal and mechanical variations found in single-head processes.

Curved-Surface Fixturing

Engineered specifically for barrel hoop curvature with shaped contact blocks and custom electrodes. Ensures full, even contact at welding positions without shimming or compromise.

Operational Flexibility

Accommodates multiple drum sizes through quick-change fixture components and programmable welding parameters. Store and recall up to 101 welding programs—switch between 55-gallon drum hoops and 20-liter pail hoops in minutes without recalibration or test welds.
