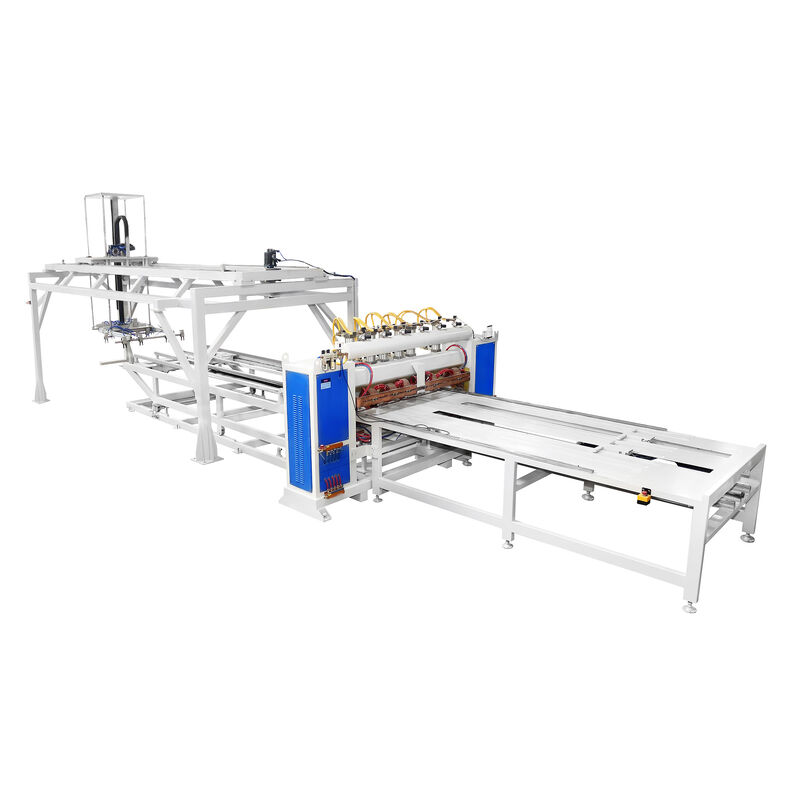

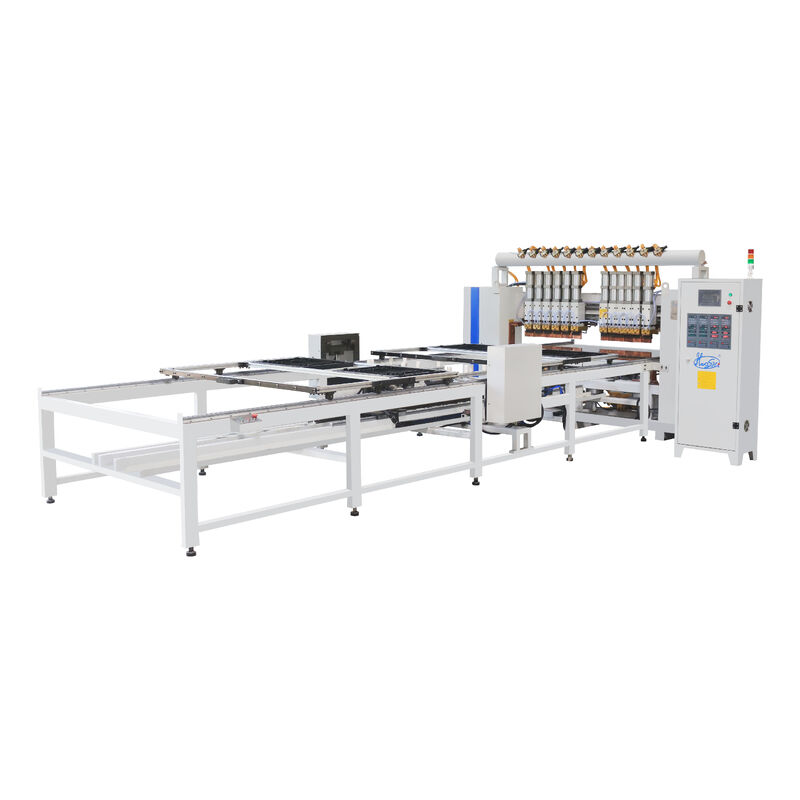

The Automated High Speed Condenser Welding Machine is a gantry-type multi-head spot welding system engineered for high-volume wire-on-tube (WOT) condenser manufacturing. Designed specifically for refrigerator, freezer, and commercial refrigeration production lines, this machine delivers precise, consistent wire-to-tube welds at industrial scale.
Equipped with multiple synchronized welding heads and a servo-driven double-layer feeding system, the machine executes the entire welding cycle automatically after material loading—from wire positioning to multi-point simultaneous welding and fixture exchange. The adjustable effective welding width accommodates a wide range of condenser panel sizes, eliminating the need for dedicated tooling changes between product specifications.
Once the operator loads materials and presses start, the machine executes the complete welding sequence autonomously. The dual-layer feeding system allows one fixture to be loaded while the other is being welded, enabling uninterrupted batch production.
The welding width is freely adjustable to accommodate various condenser specifications without mechanical modification, reducing capital investment and floor space requirements.
Multiple welding heads operate simultaneously, dramatically reducing cycle time. Each head features individually controllable welding parameters for uniform quality across the entire panel.
Built-in network voltage floating compensation ensures that when input power fluctuates within ±10%, the secondary output voltage remains within ±3% of its set value—critical for maintaining consistent weld quality.
| Parameter | Specification |
|---|---|
| Model | WL-SQ-150K×2 (Customizable) |
| Input Power | Three-phase 380V±10% 50/60Hz |
| Rated Capacity | 150 KVA × 2 (Customizable: 100KVA, 160KVA) |
| Rated Duty Cycle | 50% |
| Maximum Secondary Short-circuit Current | 40 KA |
| Effective Welding Length | 1500 mm (Customizable up to 2000 mm) |
| Effective Welding Width | 600 mm (Customizable: 600-1200 mm, dual-zone available) |
| Control Mode | PLC + Touch Screen HMI |
| Cooling System | Water-cooled (transformer, thyristor, electrodes) |
| Industry | Typical Products |
|---|---|
| Household Refrigerators | Wire-on-tube condensers, skin condensers |
| Commercial Refrigeration | Display cooler condensers, bottle cooler condensers |
| Freezers | Chest freezer condensers, upright freezer condensers |
| Air Conditioning | Condenser panels, evaporator coils |
| Heat Exchangers | Wire-on-tube heat exchangers for HVAC applications |
We design complete production lines based on your product drawings and efficiency requirements. Simply provide your specifications, and our engineers will develop the optimal solution.
Dual-fixture system allows simultaneous welding and loading operations. While one fixture undergoes welding, operators load materials onto the second fixture, with automatic fixture exchange to maximize efficiency.
