Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

私達に連絡しなさい

引用を要求しなさい
プロダクト細部
製品名:
Hwashi CNC Seven 7軸 双頭シート金属スポット溶接機 スクワトラック用の自動シート金属溶接機
保証:
12ヶ月
状態:
新しい
寿命:
8〜10年
電力(kW):
160kvax2
頻度:
1000Hz
最大厚さの厚さ:
2+2mm
支払及び船積みの言葉
最小注文数量
1セット
価格
交渉可能
パッケージの詳細
海にふさわしい木製パッケージ
受渡し時間
あなたの支払いを受け取ってから7-30営業日
支払条件
LC、T/T
供給の能力
毎月50セット
製品の説明

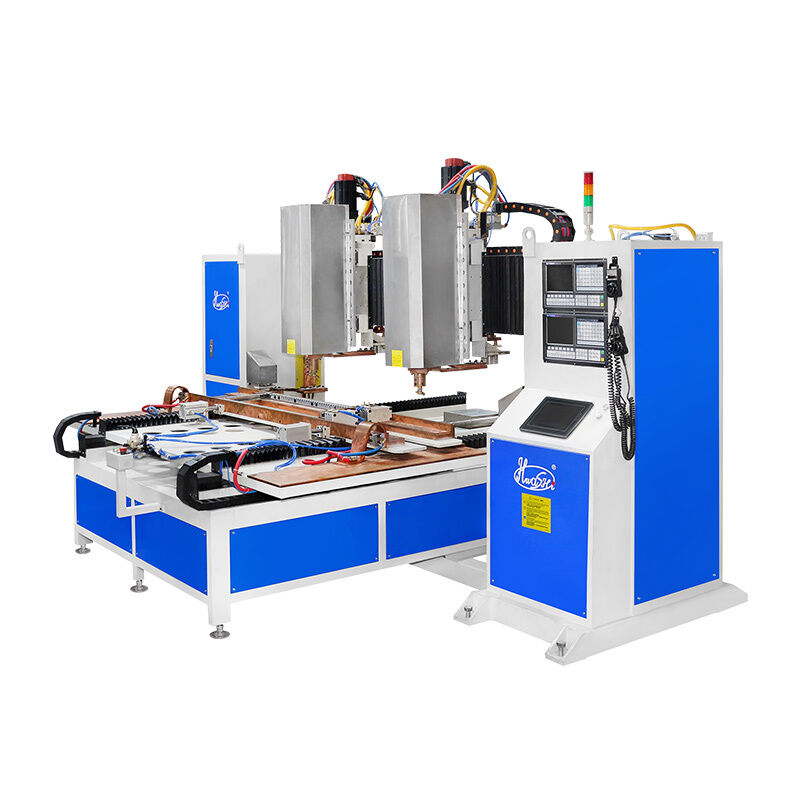

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine
This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.
Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply 0 Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply 1
Advanced CNC Control System
The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.
Key Features & Benefits
  • Medium frequency inverter power supply for consistent welding performance
  • Fully automated welding production with programmed position control
  • Operator only required for product loading and unloading
  • Significantly improved product quality and production efficiency
  • Reduced production costs and elimination of manual welding inconsistencies
  • High automation degree with reliable, repeatable results
Industrial Applications
Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.
Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply 2
Customized Engineering Solutions
We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.
Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply 3

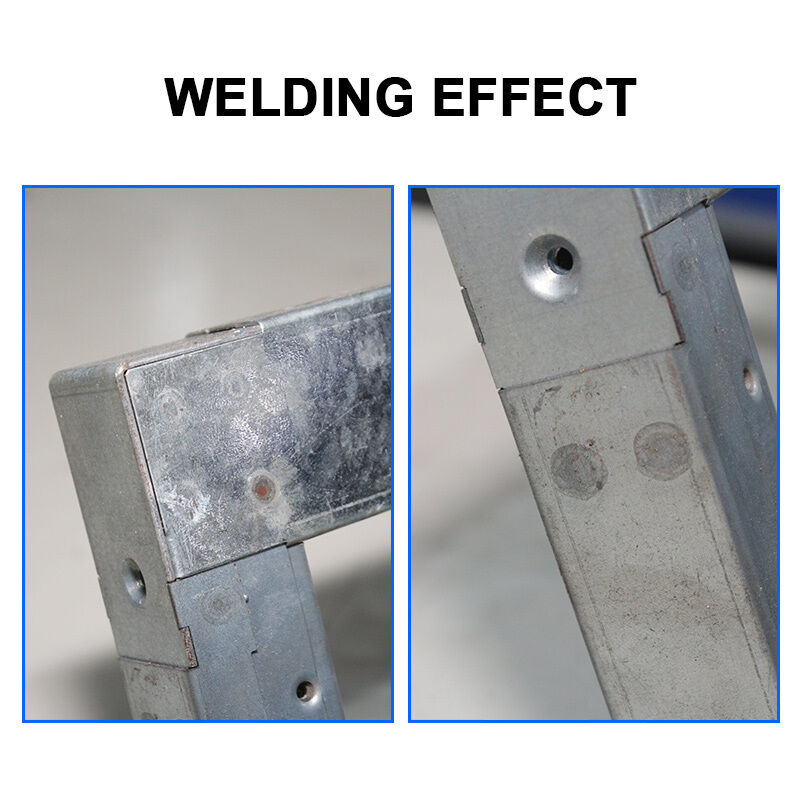

Welding Quality & Performance

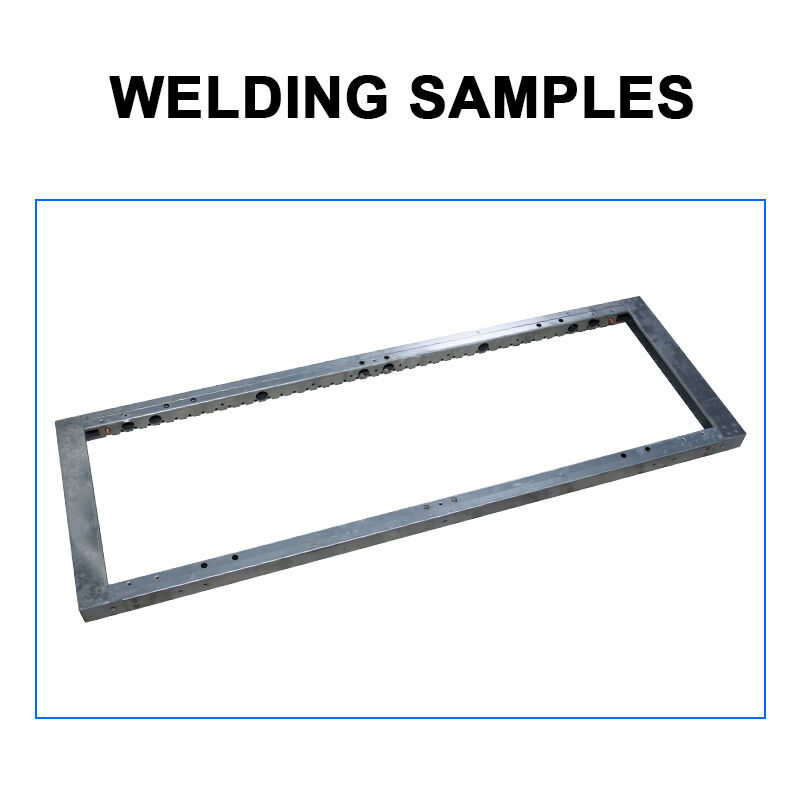

Produces firm solder joints with consistent welding effects and reliable performance across all applications.
Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply 4
Technical Specifications
Item Parameter
Rated Power 120KVA * 2
Duty Cycle 50%
Frequency 1000Hz
Effective Welding Length 1200mm
Effective Welding Width 2200mm
Welding Driving Power Servo System
Maximum Moving Speed 500mm/s
Machine Dimension L3800mm * W2600mm
Rated Air Pressure 0.6MPa
Water Temperature 10-25°C
