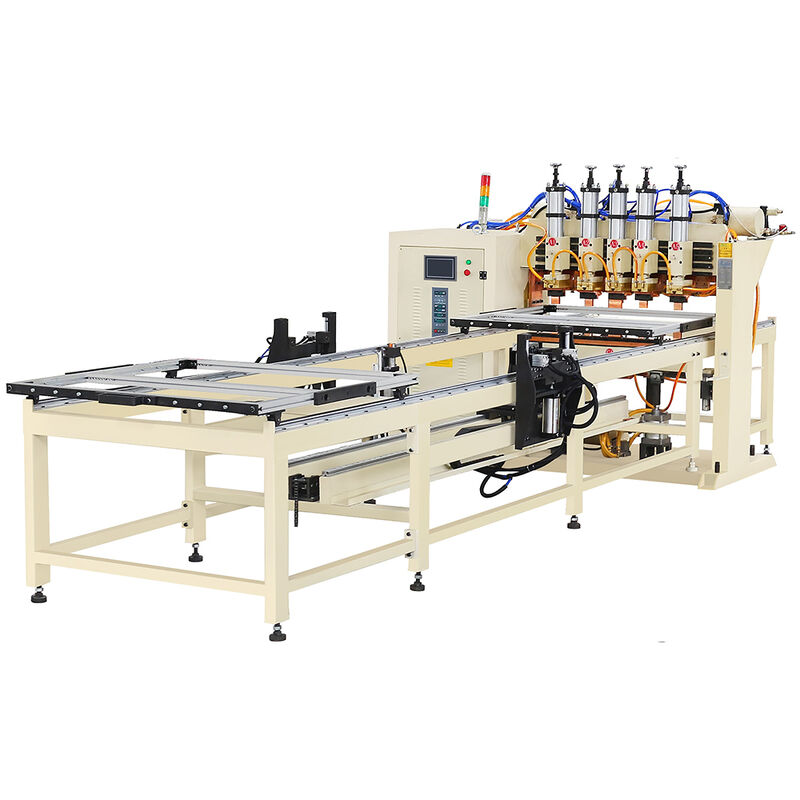

HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System

10 Welding Heads Wire Mesh Welding Machine

40000A Output Current Automatic Spot Welding Machine

Automatic Wire Filling System Gantry Style Welding Machine

起源の場所:

中国

ブランド名:

Hwashi

証明:

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

溶接の温度:

高い

使用法:

中途半端の卸貨コンテナ製造

入力電流:

300A

標準:

CE/CCC/ISO

冷却システム:

水冷

溶接速度:

時々10〜15個

出力電流:

40000A

溶接の質:

高い

支払及び船積みの言葉

最小注文数量

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

T/T、L/C

供給の能力

10セット/月

高速溶接 PLC制御自動ワイヤチューブコンデンサー生産ラインマシンと溶接と曲がりマシン

最もよい価格を得なさい

ビデオ

200mm/S 最大配線速度,2Dワイヤハンドル折りたたみ,1年間の保証

最もよい価格を得なさい

ビデオ

三相MF DC電源 1200mm 溶接幅と3000mm 長さを持つ自動ワイヤ網の溶接機

最もよい価格を得なさい

ビデオ

200mm/S 最大配線速度 2D ワイヤハンドル折りたたみと1年間の保証

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

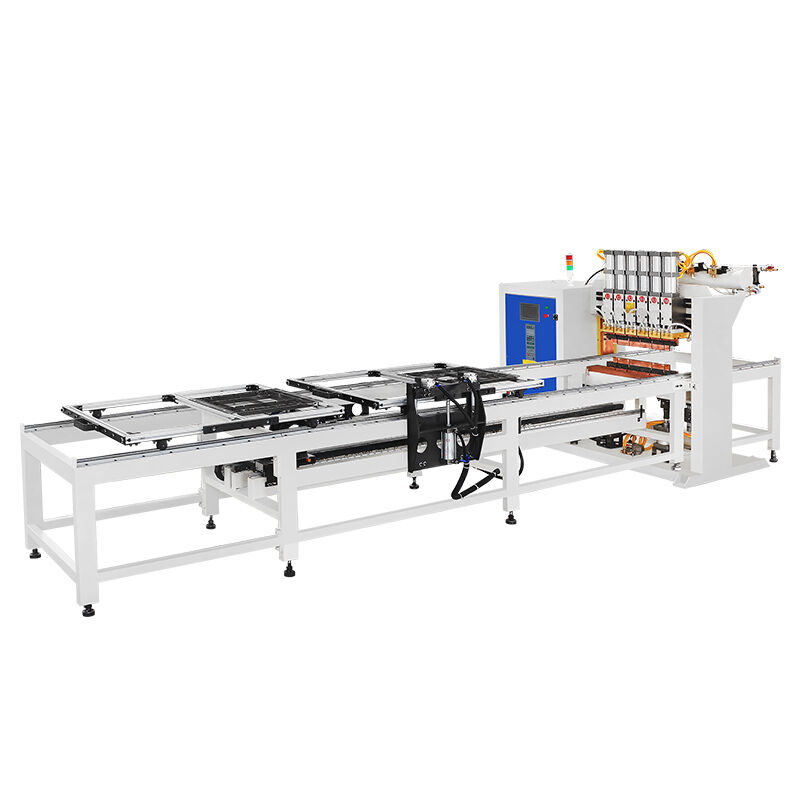

HWASHI Automatic Gantry Style Multi Head Spot Row Welding Machine

Designed for wire mesh applications with 2-8mm wire diameter, this H-type multi-head automatic welding machine features ten electrodes and comprehensive automation systems for efficient refrigerator wire shelf production.

Machine Overview

The HWASHI welding equipment is an H-type wire mesh multi-head automatic welding machine equipped with ten electrodes and automatic feeding system. This fully automated solution automatically drops wire to the fixture, executes feeding and welding operations, and features one-way double-layer feeding that moves forward and backward automatically with customizable welding distance settings.

Welding Method: One-way double-layer automatic stepping feeding with 10 welding heads
Effective Welding Width: 1200mm
Effective Welding Length: 1000mm
Ideal for batch production of wire mesh with multiple-point welding

System Components

Complete system includes main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.

Intelligent Welding Control System

Automated welding operation by inputting coordinate data of welding positions, welding current, and other parameters for precise control.

Custom Welding Heads and Fixtures

Precision processing and design according to specific wire shelf product drawings with customization options available.

Automatic Wire Filling System

Simply place precut straight wires into the hopper, and the system automatically fills wires into the fixture, significantly increasing working efficiency and reducing labor requirements.

Automatic Double-layer Feeder

Simultaneous operation capability: while one fixture undergoes welding, the wire filling system loads wires onto the other fixture. Automatic fixture exchange upon welding completion maximizes production efficiency.
