Name: Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

家 > プロダクト > IBC溶接機 >

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

PLC Control IBC Tube Forming Machine

Full Automation IBC Frame Tube Pressing Machine

Hydraulic Pressing IBC Short Tube Forming Equipment

起源の場所:

中国

ブランド名:

HWASHI

証明:

モデル番号:

WL-SQ-150K*2

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

製品名:

IBCフレームチューブ形成機械のためのHwahsi自動ショートチューブプレッシングと形成機械

制御システム:

PLC

パッキング:

木製梱包

仕様:

CCC

保証:

1年

溶接電源:

AC / MF DC

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

FCL用の海にふさわしい木製パッケージまたはPVCフィルム

受渡し時間

支払いを受け取ってから30〜45営業日

支払条件

LC、T/T

供給の能力

毎月50セット

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

最もよい価格を得なさい

ビデオ

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

最もよい価格を得なさい

ビデオ

全自動IBCグリッドケージフレーム製造ライン、漏れ検査および50秒/個の溶接効率

最もよい価格を得なさい

ビデオ

60秒/ケージサイクルタイムのIBCケージ自動生産機 ISO9001認証、2000kg重量

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

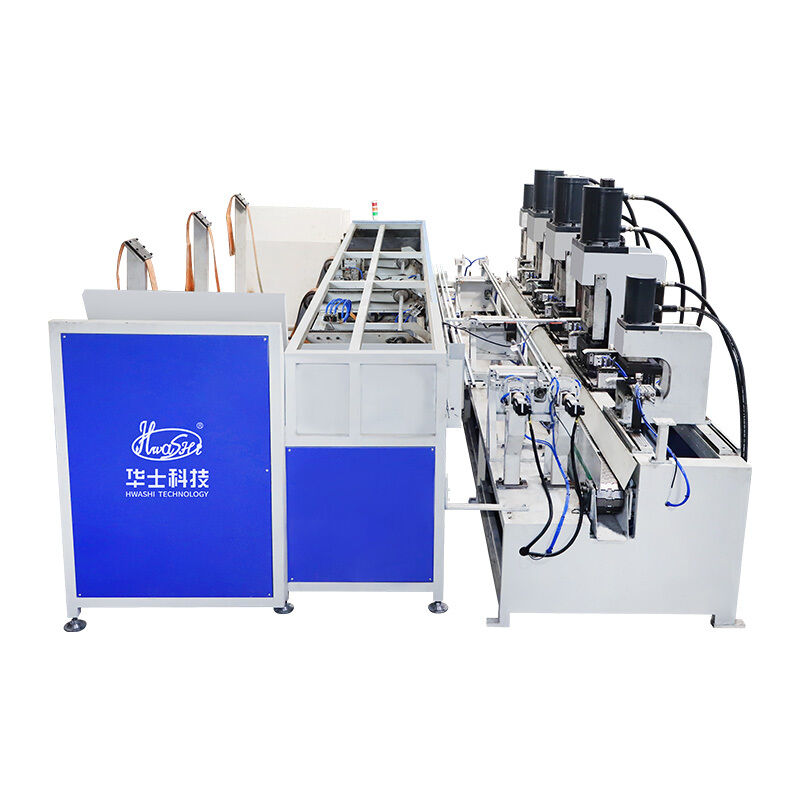

Hwahsi Automatic IBC Short Tube Pressing and Forming Machine for IBC Frame Tube

The Hwahsi Automatic Short Tube Pressing and Forming Machine is a specialized custom solution for IBC tube processing. This advanced system performs fully automated pipe feeding, pipe end forming and cutting, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features and Benefits

Full Automation: Complete automated operation eliminates manual intervention requirements
High Production Efficiency: Automated functions significantly increase production speed and reduce processing cycles
Precision Quality Control: Advanced control system ensures consistent pipe forming quality meeting industry standards
Labor Cost Reduction: Fully automated operation eliminates continuous human supervision needs
Multi-Functional Design: Integrated processing including pipe feeding, forming, cutting, and hydraulic pressing in one unit

Automated Processing Workflow

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station.

The mechanical arm picks up two pipes and positions them at the hydraulic pressing station for pressing and tube end shrinking. After processing, tubes are automatically unloaded to the conveyor system for transfer to collection trolleys.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic system
Pressing Mark Number	8 marks
Cutting Function	Integrated cutting capability
Processing Capacity	2 pieces per cycle
Production Efficiency	12-15 seconds per 2 pieces

This specialized IBC tube processing machine provides manufacturing businesses with an efficient, precise, and cost-effective production solution that enhances overall production line performance.
