Name: Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-100K
Price: 14,000.00 USD
Availability: InStock

家 > プロダクト > スポット溶接機械 >

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Customizable Spot Welding Machine

AC Pulse Spot Welder

Hardware Industry Pneumatic Spot Welding Machine

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

モデル番号:

WL-SP-100K

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

製品名:

ハードウェア産業の異なる溶接要件のためのHwashiカスタマイズ可能なACパルススポット溶接機

応用:

銅アルミニウム鋼鉄の溶接

サイズ:

850×900×1850*ミリ

重さ:

450kg

状態:

新しい

保証:

12ヶ月

証明書:

CE/CCC/ISO

耐用年数:

8〜10年

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

LC、T/T

供給の能力

月額50セット

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

最もよい価格を得なさい

ビデオ

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

最もよい価格を得なさい

ビデオ

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

最もよい価格を得なさい

ビデオ

HWASHI WL-MF-250K 垂直型中周波インバータスポット溶接機、一貫した金属板溶接のための1000Hz技術搭載

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

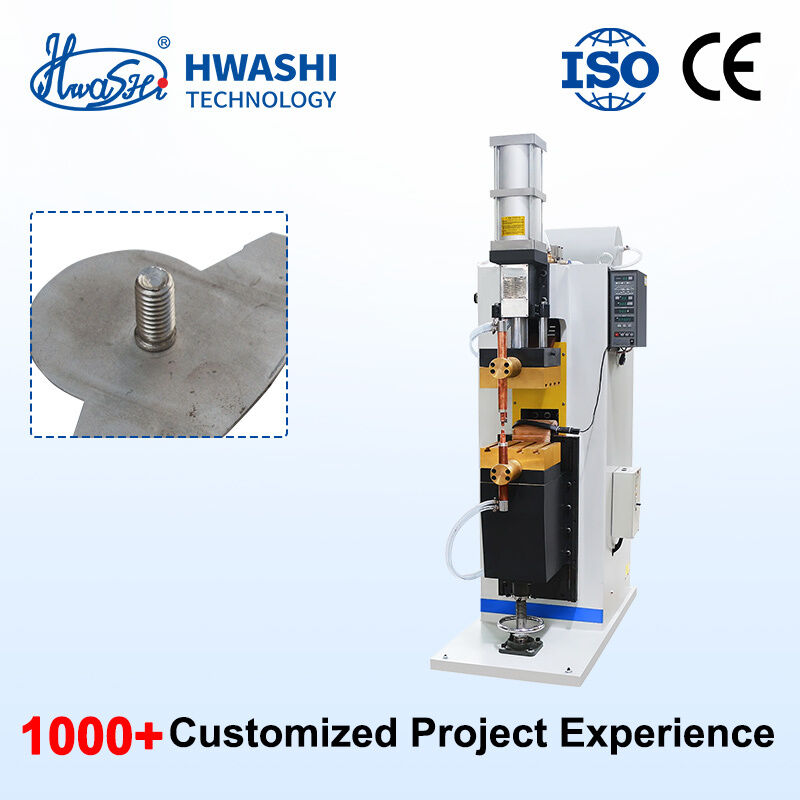

Hwashi Customizable AC Pulse Spot Welding Machine

The Hwashi AC Pulse Spot Welding Machine is engineered to meet diverse welding requirements in the hardware industry. This customizable solution transforms standard mains supply into precise welding power for various applications.

The AC pulse spot welding machine utilizes standard mains supply to lower voltage and increase electric current. This low-voltage, high-current energy is transmitted through electrodes to the connection point of two work pieces. The resistance at the linkage generates high temperatures, causing the metal to reach molten state and effectively welding the components together.

Key Features

Three control functions: constant primary and secondary current, constant voltage
Automatic adjustment of welding power and welding current
Complete automation with automatic cycle control for each program segment
Automatic repair welding when current levels are insufficient
Direct parameter setting via control panel for different welding models
Support for both single welding and continuous welding operations
Individual setting capability for intensity and time of welding current
Pneumatic control with delay functionality
Storage capacity for 9 different welding models
Silicon controlled phase shift triggering for precise current adjustment
Automatic voltage compensation for stable welding current

Technical Specifications

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16
