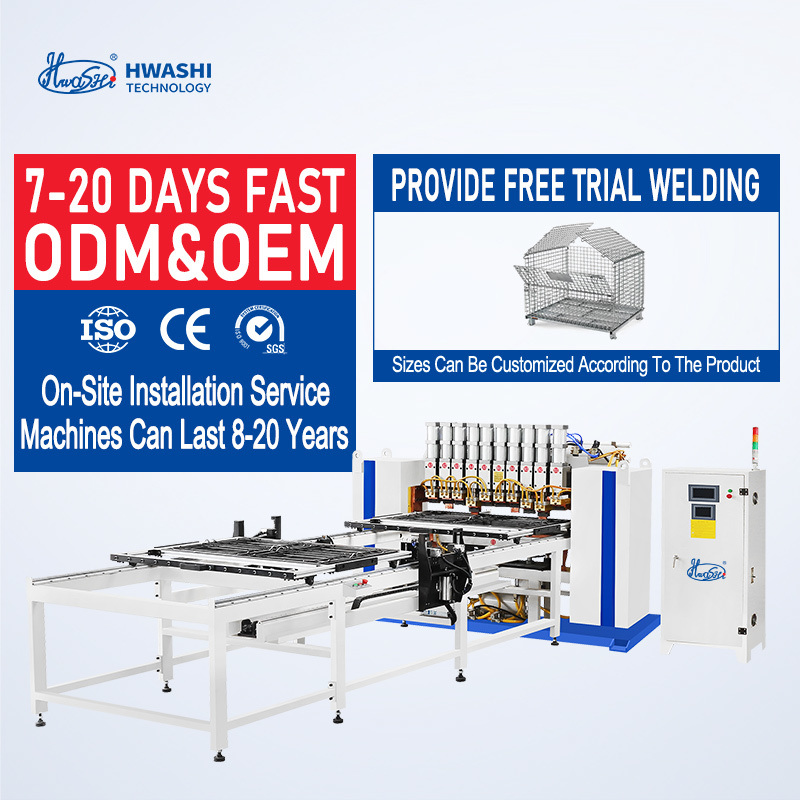

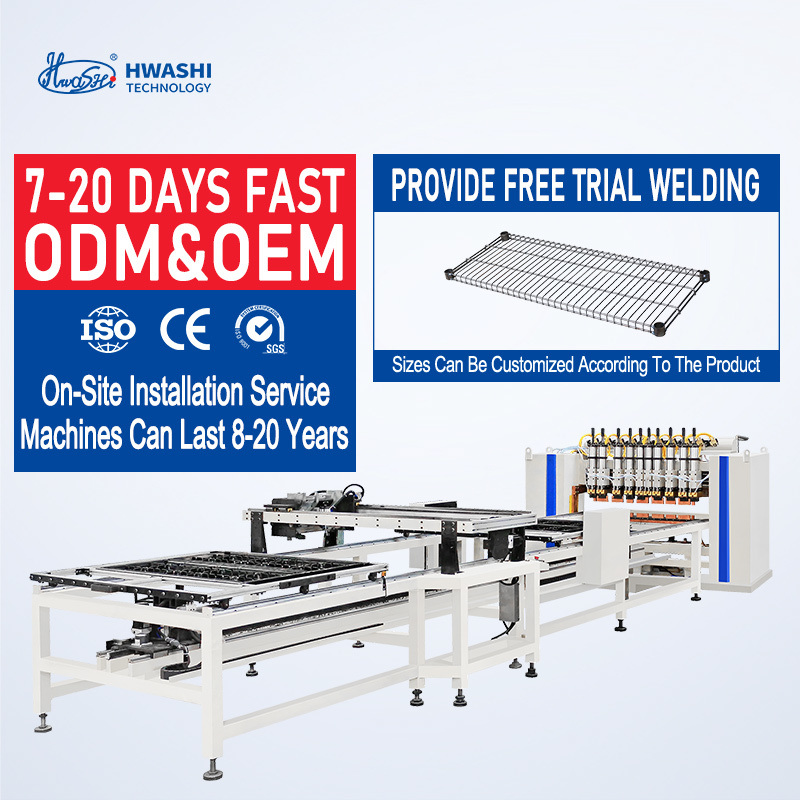

Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

家 > プロダクト > 金網溶接機 >

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

1 Year Warranty Wire Mesh Welding Machine

200mm/S Maximum Wiring Speed Automatic Wire Mesh Welder

2D Wire Handle Bending Industrial Wire Mesh Welding Equipment

起源の場所:

中国

ブランド名:

HWASHI

証明:

CE/CCC/ISO

モデル番号:

WL-SQ-MF100K

私達に連絡しなさい

引用を要求しなさい

プロダクト細部

2Dワイヤハンドル曲げマシン:

2〜6mmのワイヤー曲げのワイヤーハンドルを曲げます

効果的な溶接幅:

1200mm

製品カテゴリー:

ワイヤーメッシュ溶接機

製品名:

溶接電源3フェーズMF DC電源電源ワイヤーメッシュ溶接機

ワイヤエッジトリミングマシン:

ワイヤーフレームからワイヤの端を切り取り、表面を清潔で滑らかにする

最大配線速度:

200mm/s

有効な溶接長:

3000mm

高速ワイヤストレートリングおよびカッティングマシン:

通常の速度のほぼ5倍で2mmから4mmのワイヤのバッチ生産を作成します

支払及び船積みの言葉

最小注文数量

1セット

価格

交渉可能

パッケージの詳細

海にふさわしい木製パッケージ

受渡し時間

あなたの支払いを受け取ってから7-30営業日

支払条件

LC、T/T

供給の能力

月額50セット

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

最もよい価格を得なさい

ビデオ

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

最もよい価格を得なさい

ビデオ

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

最もよい価格を得なさい

ビデオ

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

最もよい価格を得なさい

私達に連絡しなさい

+86-13380655800

export_trade@hwashi.com

86-752-3528326

今接触

製品の説明

Automatic Wire Mesh Welding Machine with 1 Year Warranty

200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

The Automatic Wire Mesh Welding Machine is a cutting-edge industrial equipment engineered to streamline the production of high-quality wire meshes with minimal human intervention. Integrating a precision double-layer feeder and an intelligent automatic wire filling system, this machine is tailored for large-scale manufacturing scenarios such as construction reinforcement mesh, fence mesh, filter mesh, and gabion mesh production.

Core Features & Competitive Advantages

Double-Layer Feeder System: Enables simultaneous feeding of two sets of wires with independent tension control, doubling processing capacity compared to traditional feeders.
Intelligent Automatic Wire Filling: Features 500kg capacity storage bin with photoelectric sensing for automatic replenishment, reducing downtime by 30%.
Precision Welding Technology: Medium-frequency DC welding (50-500A adjustable) with digital control for consistent weld quality (≥95% base wire strength).
Full Automation: Complete process from wire feeding to mesh cutting with 7-inch touchscreen HMI storing 50 production parameter sets.

Technical Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
1200mm effective welding width for large mesh products

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Ordering Information

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
